Reliable manual pumps with a moulded synthetic diaphragm and a corrosion-resistant aluminium alloy body — designed for durability and ease of use without lubrication.
Diaphragm & Valves: Resistant to petroleum products, sunlight, and weathering
Valves: Spring-closed for positive action
Maintenance: No lubrication required; pivots run on bronze bushes
Displacement: 5 strokes = 4.5 L (1 gallon)
Max. Lift Capacity: 6 m (20 ft)
Pressure per Stroke: 10 to 25 psi

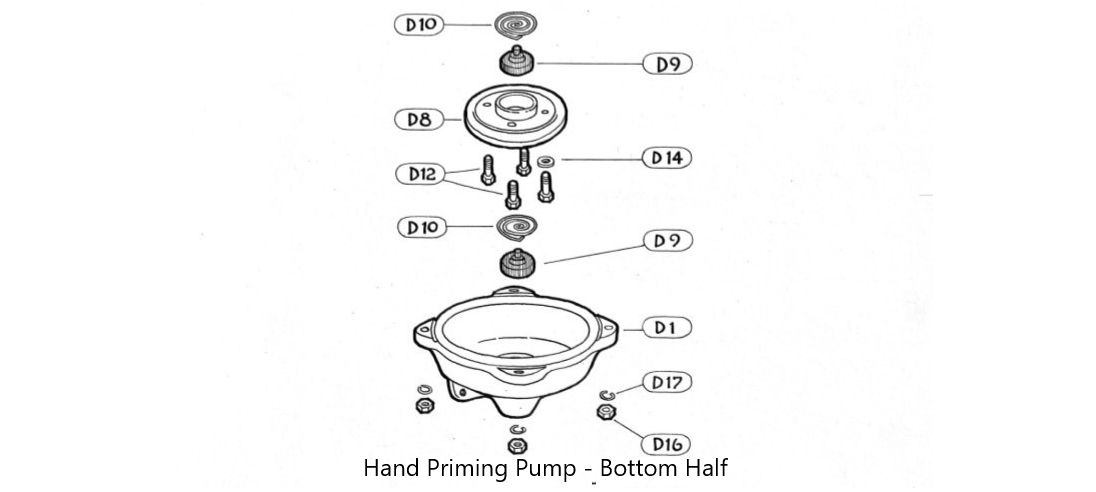

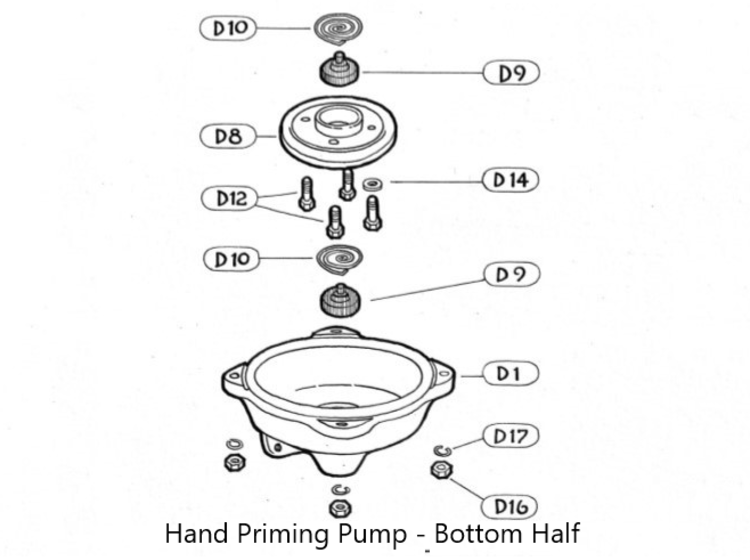

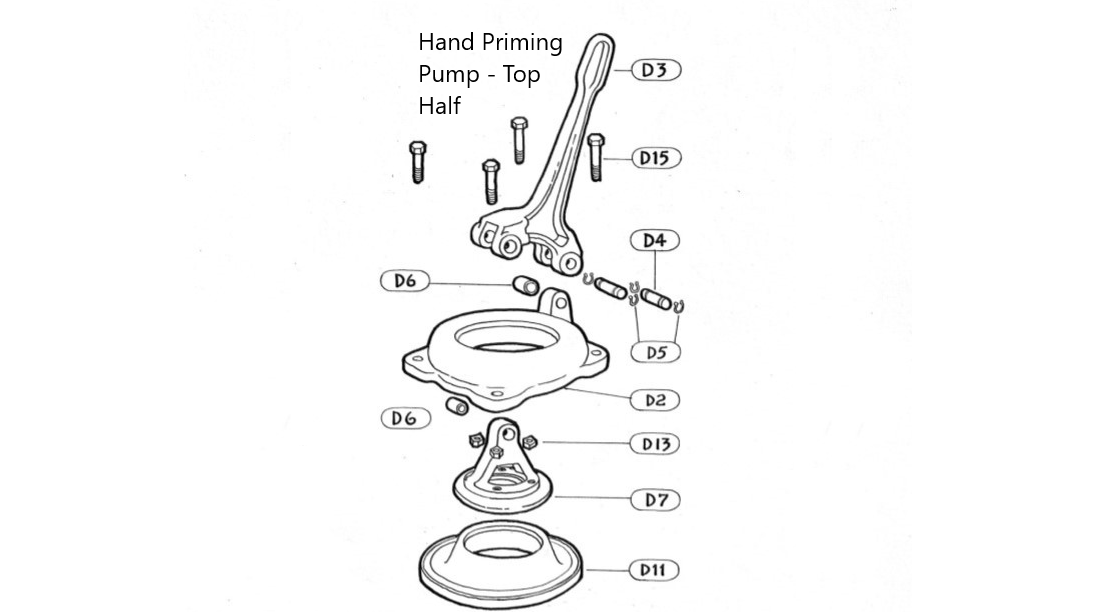

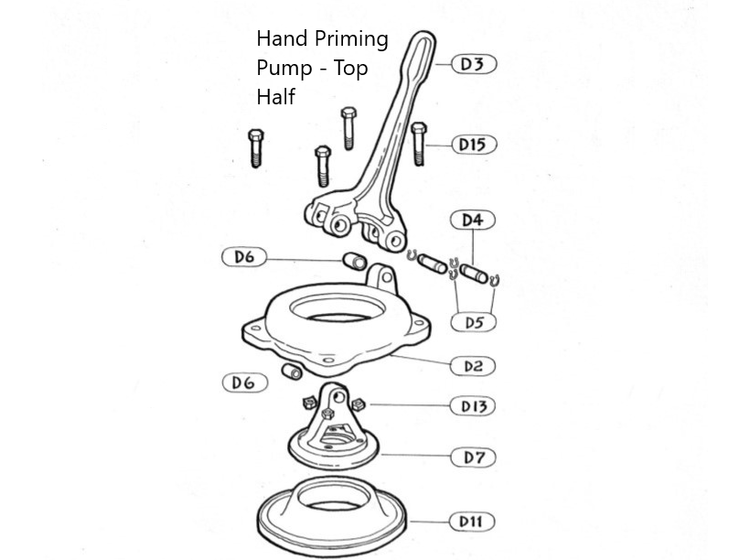

Specially designed for priming centrifugal pumps or creating a high vacuum to initiate pumping.
Inlet Connection: ¾" BSP
Mounting: Bolts through base flange

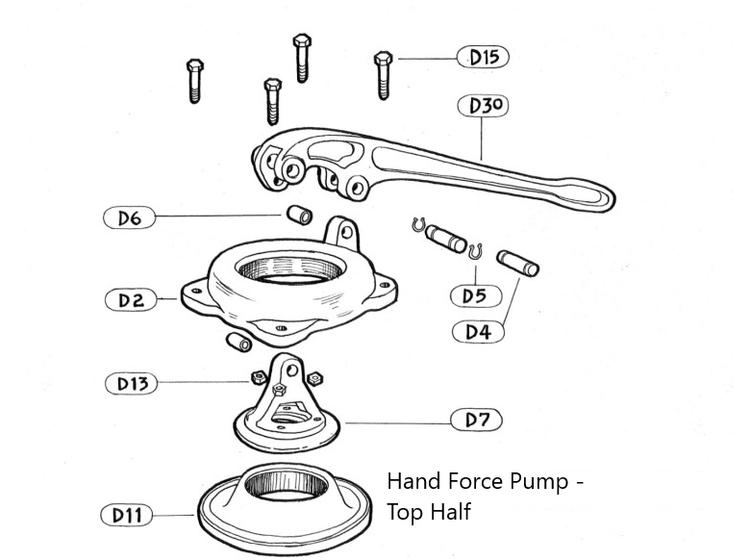

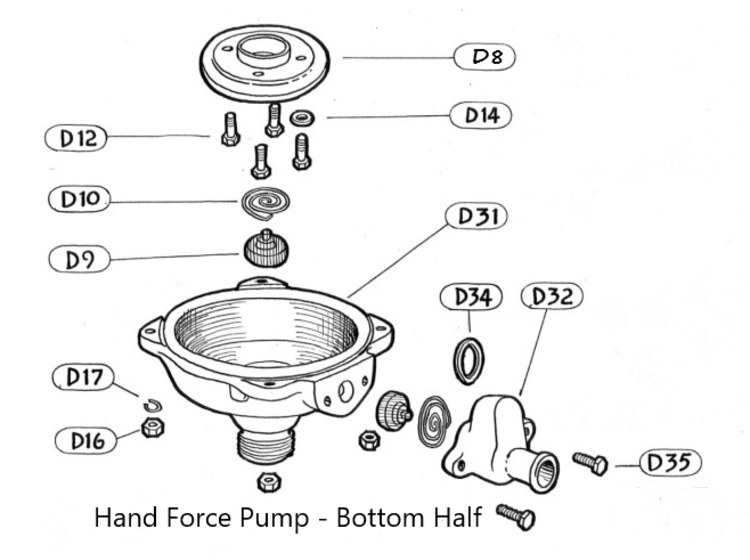

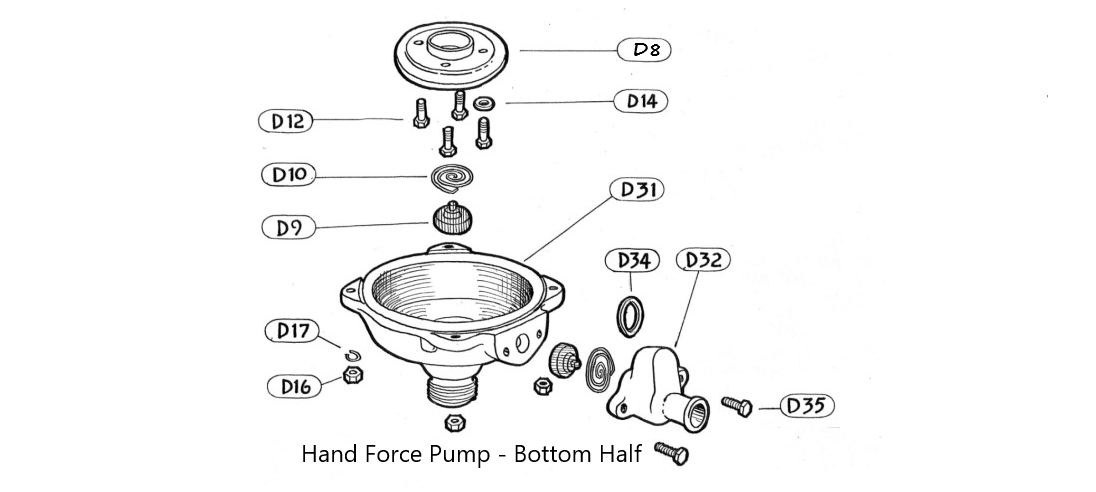

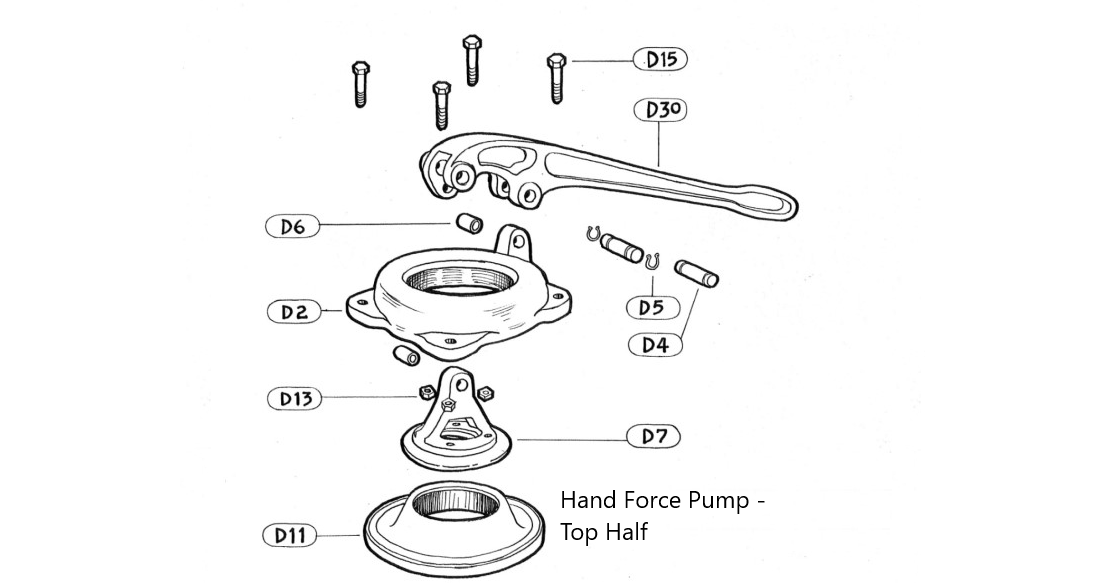

Versatile pump for water, kerosene, oils, and petrol — built to mount directly onto a standard 44-gallon drum.
Inlet Connection: 2" flange or socket
Outlet Connection: 25 mm (1") bore hose
Mounting: 2" flange or socket
For pumps or parts inquiries, contact your local agent or get in touch with us directly. We’re happy to help.
Not sure which pump is the best fit for you? No worries! Check out our pump comparison page here.
