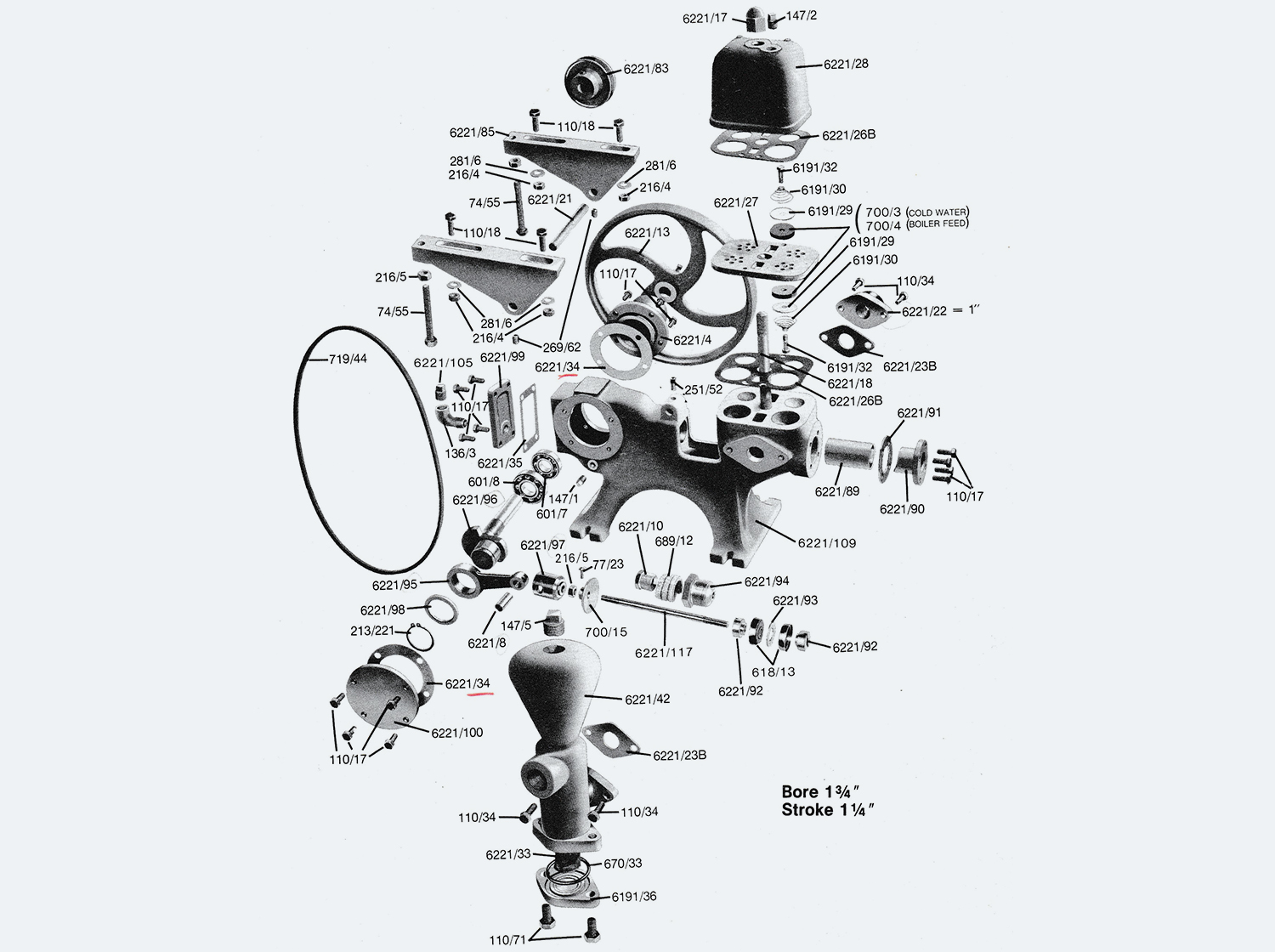

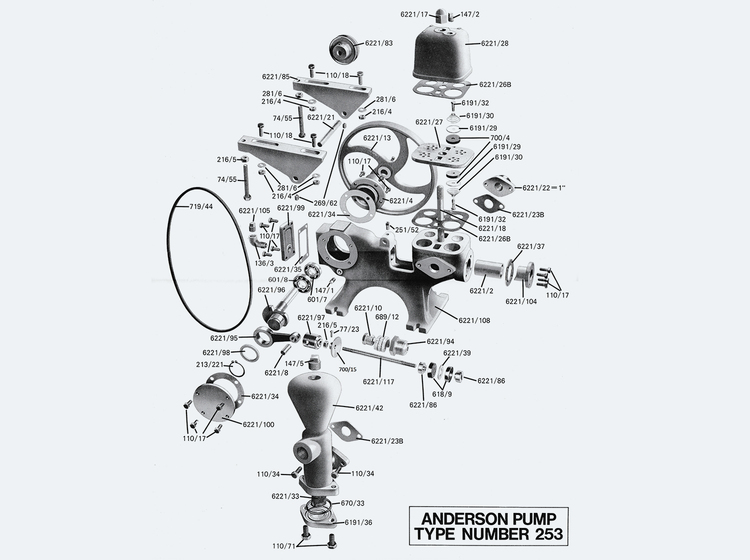

ANDERSON 253

Designed for high-pressure boiler applications, the Anderson 253 is built to handle both cold water (with leather cups and softer valve rubbers) and boiler feed (with tulip cups and harder valve rubbers).

• Flow Rate: 1,136 litres per hour (250 gallons)
• Maximum Head (Delivery Side): 130 psi (300ft or 91m vertical lift)
• Maximum Lift (Suction Side): 7.5m (25ft)
• Plunger cup size: 1 3/8" (35mm)
• Motor: Designed for a 1,425-rpm electrical motor
• Oil Type: SAE 30 oil

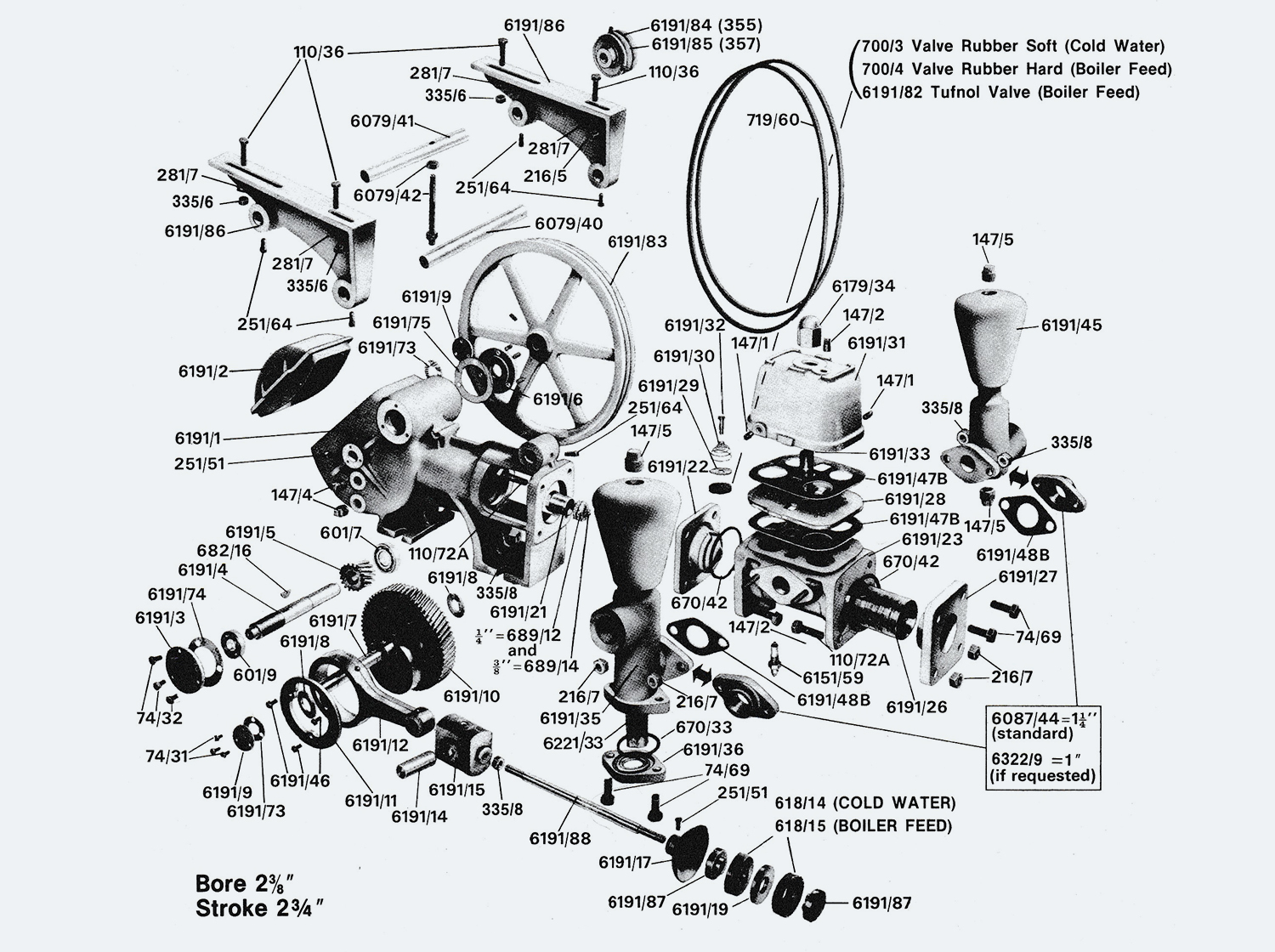

ANDERSON 355 AND 357

The Anderson 350 Series pumps are highly popular for a variety of applications. Both the 355 and 357 models offer excellent performance but are designed for different operational needs.

ANDERSON 355 – Higher Volume, Lower Pressure

• Motor Pulley: Larger 4 1/2" pulley, designed for cold water, using leather cups and softer valve rubbers
• Flow Rate: 2,273 litres per hour (500 gallons)
• Maximum Head (Delivery Side): 216 psi (500ft or 150m vertical lift)

ANDERSON 357 – Higher Pressure, Lower Volume

• Motor Pulley: Smaller 3" pulley, designed for higher pressures, using tulip cups and harder valve rubbers for handling 100+ psi pressures
• Flow Rate: 1,590 litres per hour (350 gallons)
• Maximum Head: 303 psi (700ft or 213m vertical lift)
• Plunger Cup Size: 2 3/8" (60mm)
• Motor: Designed for a 1,425-rpm electrical motor
• Oil Type: SAE 90 oil
• Maximum Lift (Suction Side): 7.5m (25ft)

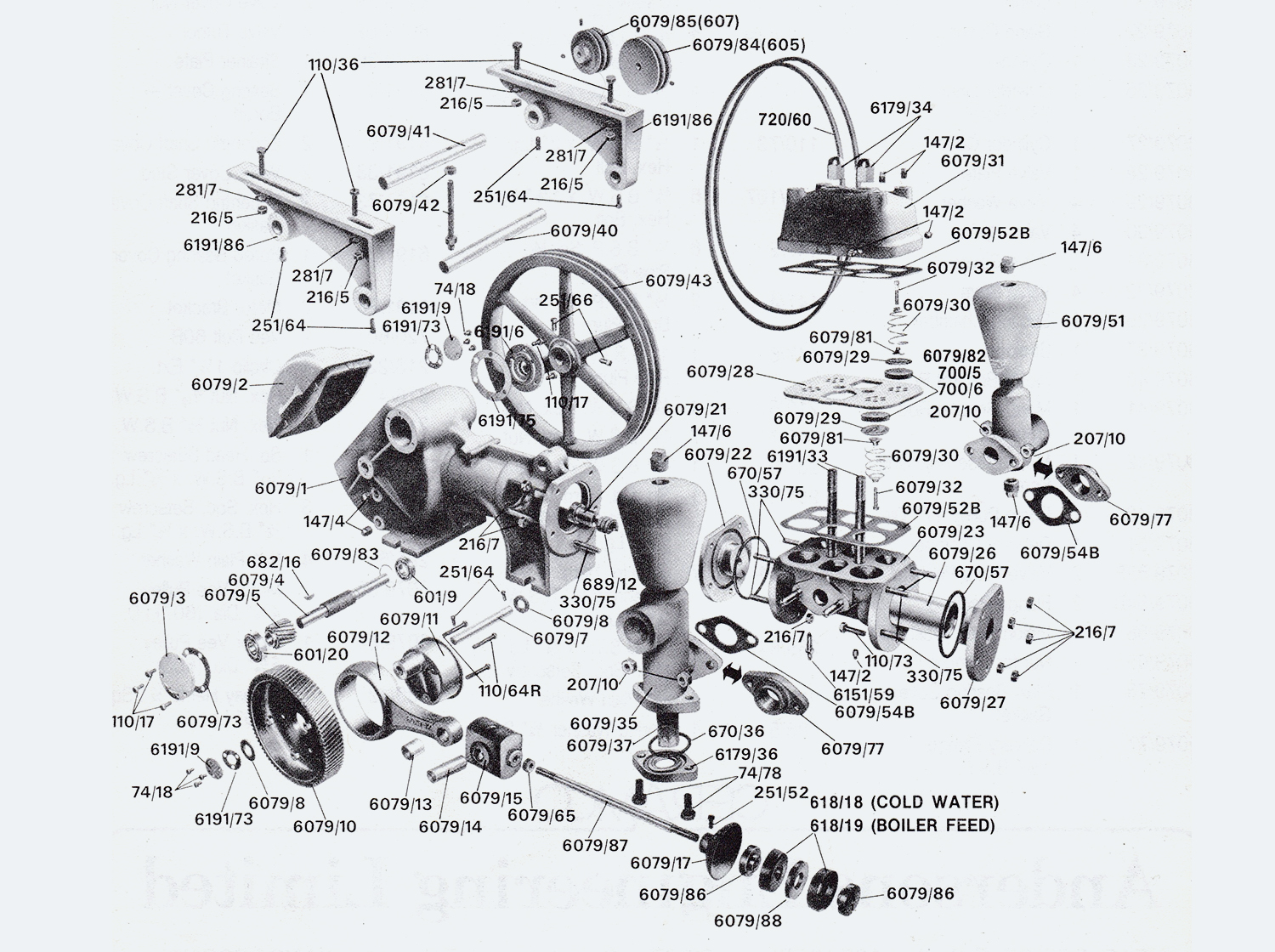

ANDERSON  605 AND 607

The Anderson 605 and 607 models are built for heavy-duty use, with each pump catering to specific needs in volume and pressure.

ANDERSON 605 – Higher Volume, Lower Pressure

• Plunger Cups: Leather cups and softer valve rubbers
• Flow Rate: 3,636 litres per hour (800 gallons)
• Maximum Head (Delivery Side): 238 psi (550ft or 167m vertical lift)

ANDERSON 607 – Higher Pressure, Lower Volume

• Plunger Cups: Tulip cups with harder valve rubbers for handling 100+ psi
• Flow Rate: 2,955 litres per hour (650 gallons)
• Maximum Head: 303 psi (700ft or 213m vertical lift)
• Plunger Cup Size: 2 3/4" (67mm)
• Motor: Designed for a 1,425-rpm electrical motor
• Oil Type: SAE 90 oil
• Maximum Lift (Suction Side): 7.5m (25ft)

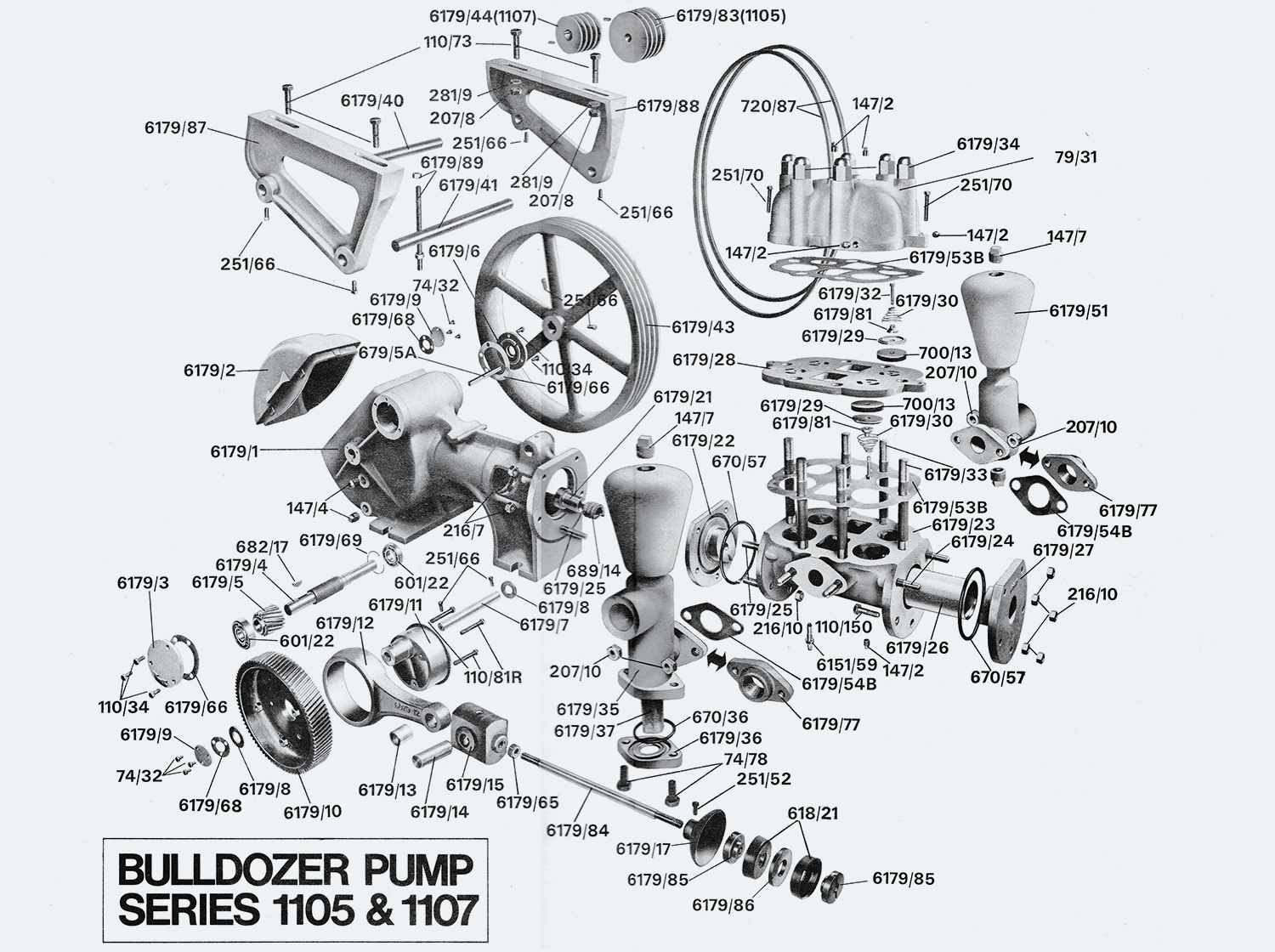

ANDERSON 1105 & 1107

For heavy-duty water movement, the Anderson 1105 and 1107 pumps are the ideal solution, offering high performance and durability.

ANDERSON 1105

• Plunger Cups: Leather cups with hard valve rubbers
• Flow Rate: 6,364 litres per hour (1,400 gallons)
• Maximum Head: 238 psi (550ft or 167m vertical lift)

ANDERSON 1107

• Plunger Cups: Tulip cups with Teflon valves
• Flow Rate: 4,773 litres per hour (1,050 gallons)
• Maximum Head: 303 psi (700ft or 213m vertical lift)
• Plunger Cup Size: 3 1/2" (89mm)
• Motor: Designed for a 1,425-rpm electrical motor
• Oil Type: SAE 90 oil
• Maximum Lift (Suction Side): 7.5m (25ft)

For pumps or parts inquiries, contact your local agent or get in touch with us directly. We’re happy to help.

Not sure which pump is the best fit for you? No worries! Check out our pump comparison page here.
