Disclaimer: We can only supply spare parts for these pumps; new pumps are not available. If a part is marked N/A on the Parts Diagram, we cannot supply this part.

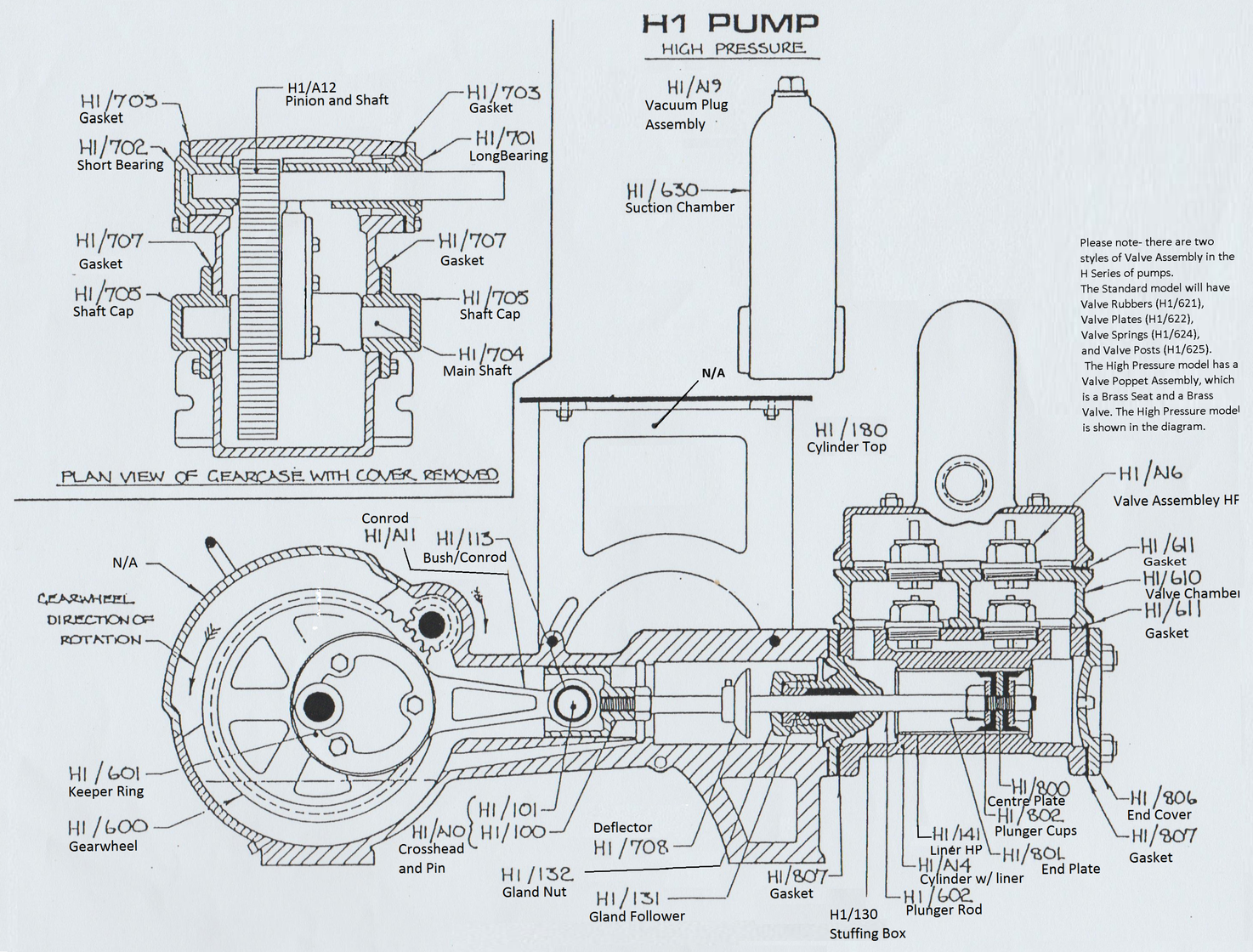

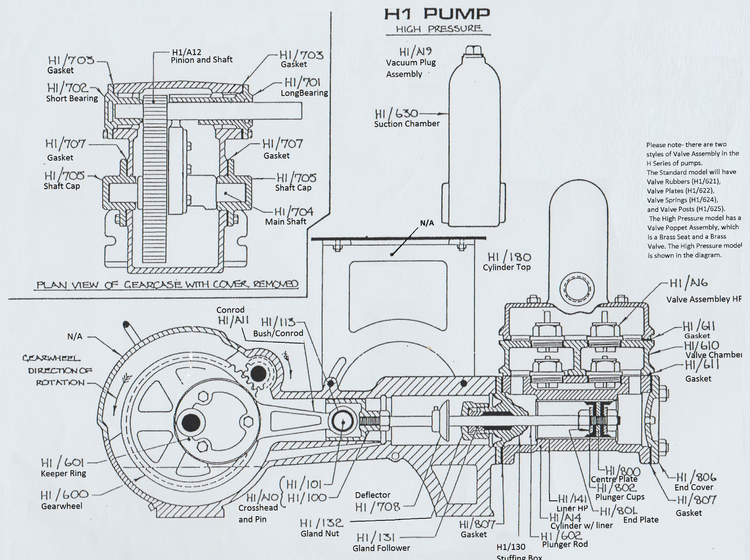

h1 pumps

The most popular of the H series. There are two different sizes in this range: the Standard (STD) and the High Pressure (HP).

The Standard (STD) - 2 3/4" bore

• Flow rate: 2,273 litres per hour (500 gallons)
• Maximum pressure: 130 psi (91m or 300ft of vertical head)

The High Pressure (HP) - 2 1/4" bore

• Flow rate:  1,365 litres per hour (300 gallons)
• Maximum pressure: 260 psi (180m or 600ft of vertical head)

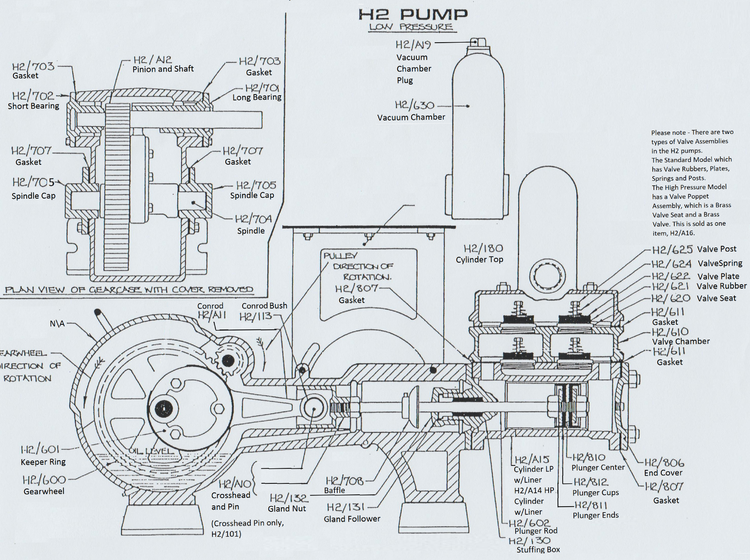

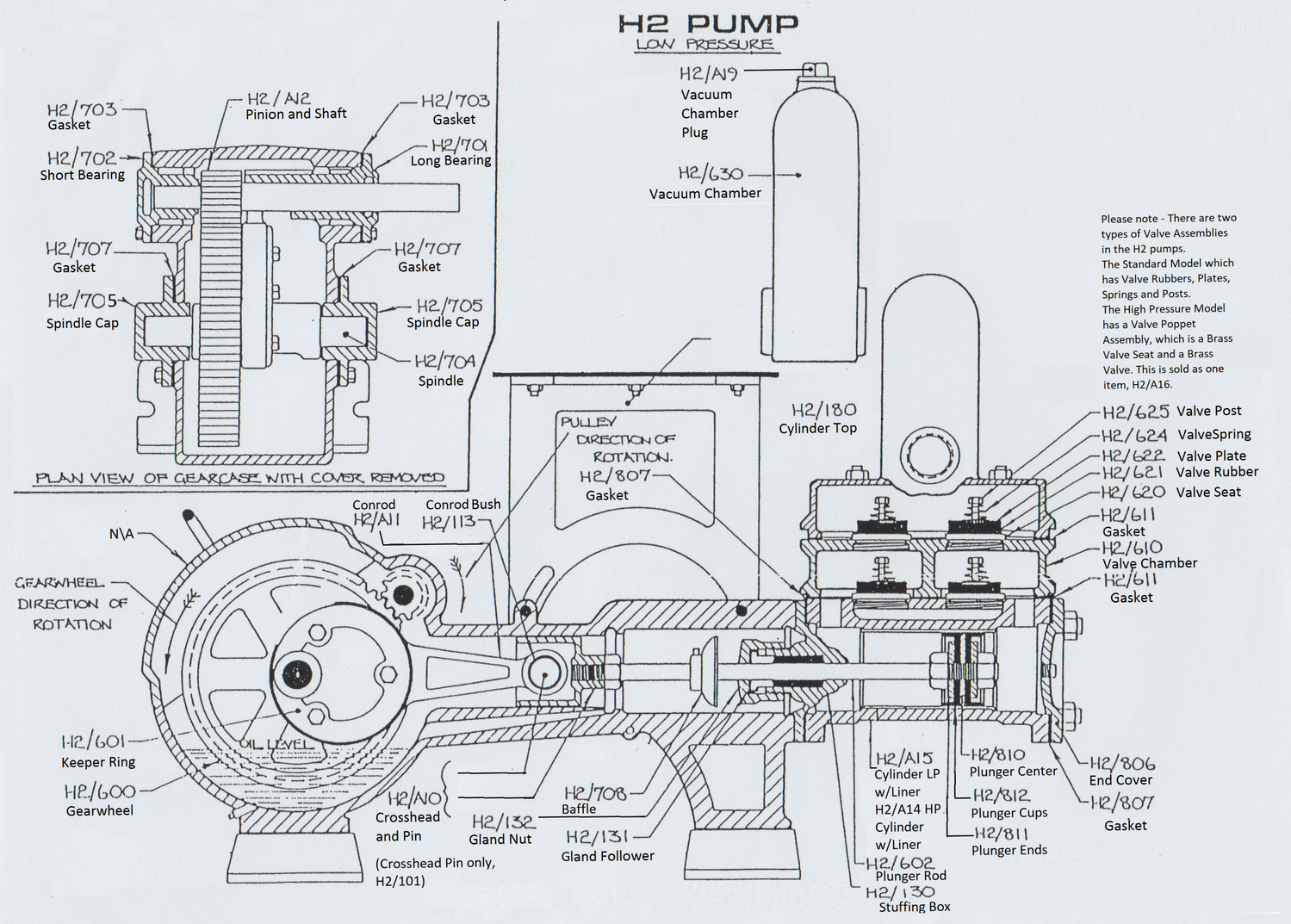

h2 Pumps

Reliable with a higher flow rate than the H1. There are two different sizes in this range: the Standard (STD) and the High Pressure (HP).

The Standard (STD) - 3 1/2" bore

•  Flow rate: 4,225 litres per hour (930 gallons)
•  Maximum pressure: 130 psi (91m or 300ft of vertical head)

The High Pressure (HP) - 3" bore

• Flow rate: 2,680 litres per hour (590 gallons)
• Maximum pressure: 215 psi (152m or 500ft of vertical head)

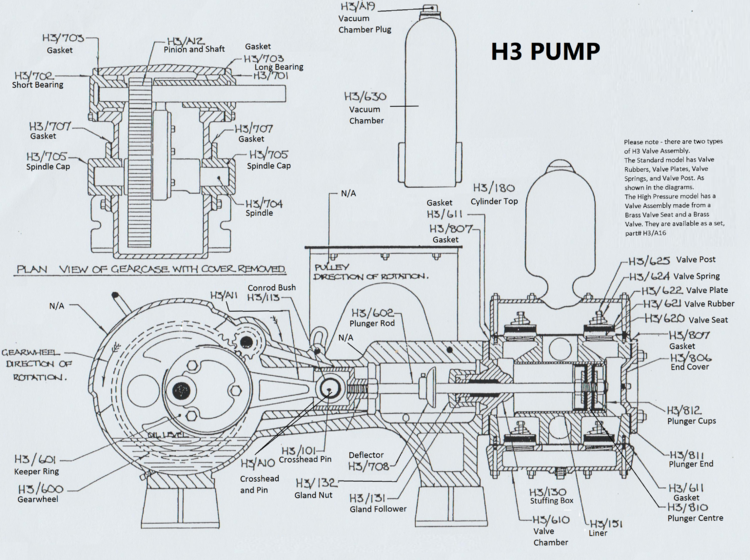

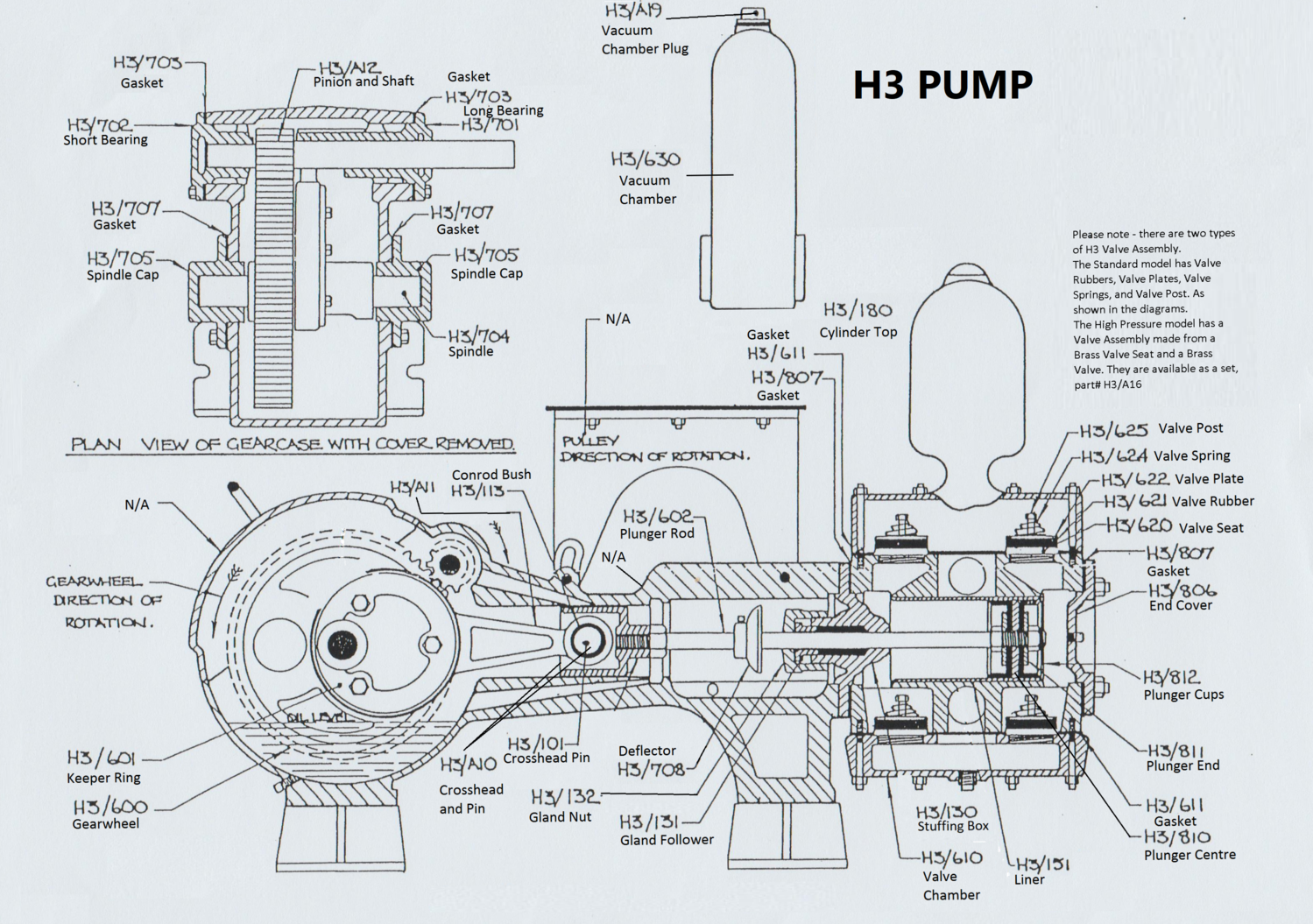

h3 pumps

These pumps offer the largest flow rate of the H series that we support. There are two different sizes in this range: the Standard (STD)  and the High Pressure (HP).

The Standard (STD) - 4 1/2" bore

• Flow rate: 9,090 litres per hour (2,000 gallons)
• Maximum pressure: 130 psi (91m or 300ft of vertical head)

The High Pressure (HP) - 4" bore

• Flow rate: 5,225 litres per hour (1,150 gallons)
• Maximum pressure: 215 psi (152m or 500ft of vertical head)

For pumps or parts inquiries, contact your local agent or get in touch with us directly. We’re happy to help.

Not sure which pump is the best fit for you? No worries! Check out our pump comparison page here.
